Automatic Tape Applicator to Shelf Wobbler & Small Goods (seperately sold, UV disinfecting device can be attached)
15P-021On SaleMADE IN JAPAN
Automatic Tape Applicator to Shelf Wobbler & Small Goods (seperately sold, UV disinfecting device can be attached)

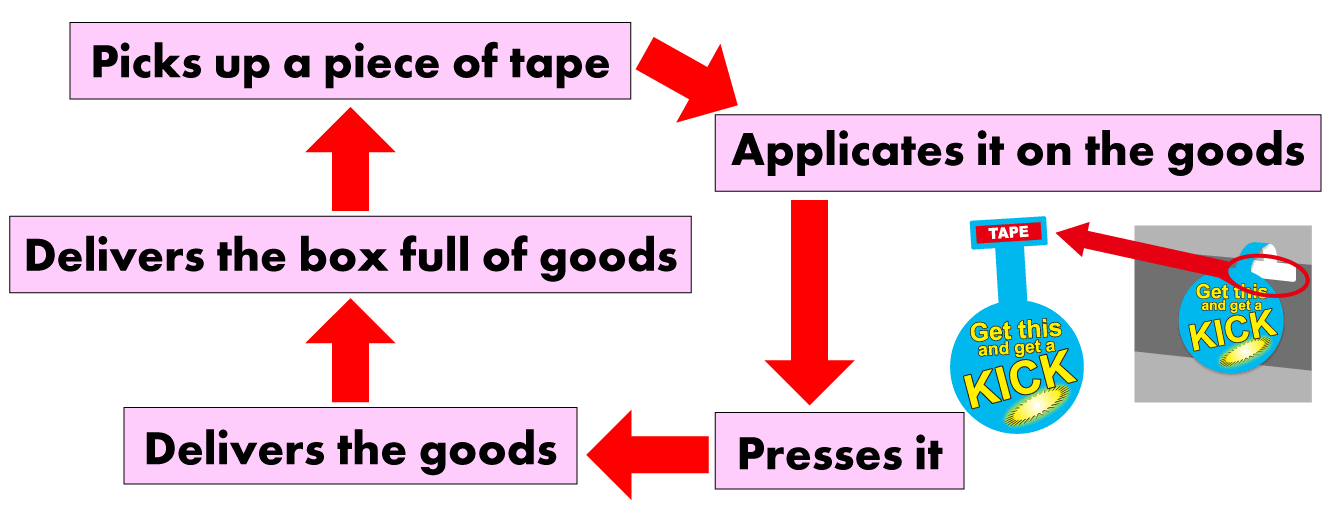

～Just One Robo Does All 5 Jobs～
Plus UV disinfection with seperate device
1-3 Pieces in 1 Row
Put a Sticker in the Middle
Incredibly Cost-Saving
On-site Member is NOT Necessary
Job is Held on just stacked wobblers/Small Goods
Accompanying Attachment Enables Switching Product
Goods size : 60~140mm x 60~130mm

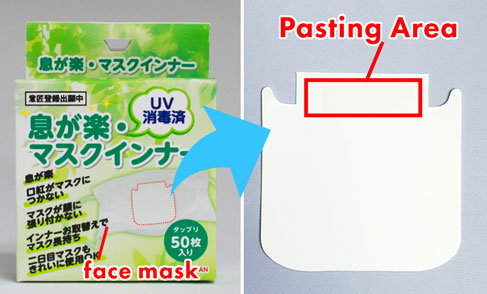

Pasting Area : 1~100mm from the top edge x 20~100mm
Tape size : 10~30mm x 20~50mm
Can Put 1~3 Pieces per Goods in 1 row
Can Put a Square Sticker in the Middle
Can Set the Number of Goods per Container
Highly Accurate, Defective Tape Location Occurs Less Than 1%
Can Run Around the Clock
Can Install a UV Disinfecting Device Sold Separately
【WAVE15P-021】
This is the Sample Goods Produced Here.
Sample Lay out
【WAVE15P-021】
Multiple Pieces in 1 Row
【WAVE15P-021】
Pasting in the Middle
The machine in use which can be taken into : conventional electric tape cutter, (M1000 is recommended), compressor , etc
Can customize target size on your request
Main Parts list : Robot(EZ-03), Wave's standard pedestal, 5-WAY robot hand, a set of control device, Platform with level adjustment function, delivery system
Can prepare electric tape cutter and compressor on your request
